دستگاه CNC Turning Center

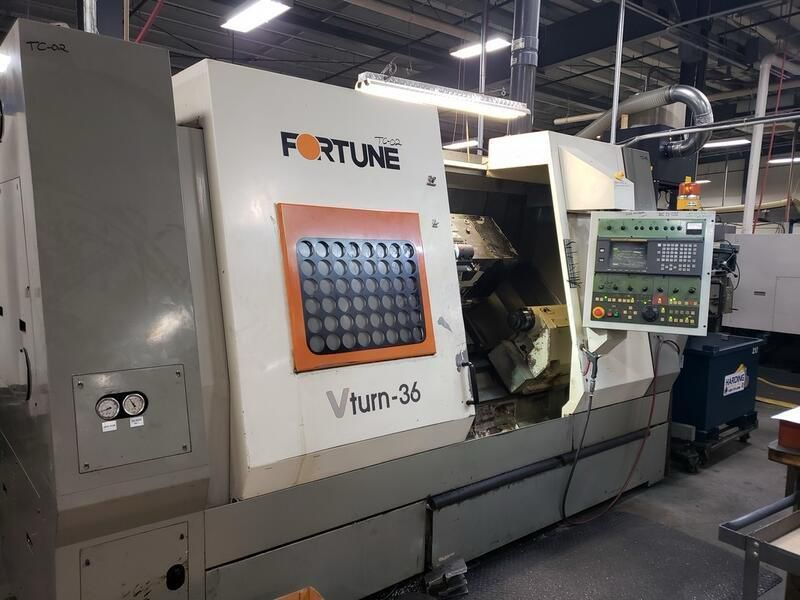

1998 Fortune VTURN-36
CNC Turning Center
Max Turning Diameter: 21.6″
Max Turning Length: 35.29″
Max Bar Capacity: 3.55″
Swing Over Bed: 25.4″
Distance Between Centers: 36.4
X Axis Travel: 11.9″
Z Axis Travel: 33.6″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-8
Spindle Bore: 4.13″
Spindle Speed: 35-2500 RPM
Spindle Motor: 35 HP
Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 24.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.94″
Tailstock Taper: MT-5
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 41 kva
Overall Dimensions: 132″ x 78″ x 80″ H
Weight: 18000 lbs Approx.
-EQUIPPED WITH-
Box Way Heavy Duty Construction

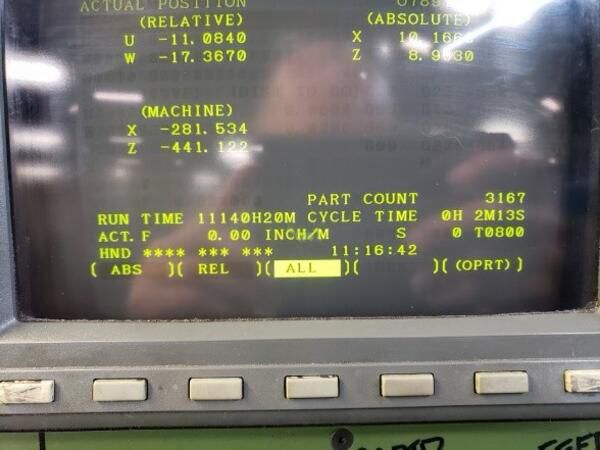

Fanuc 18-TC CNC Control

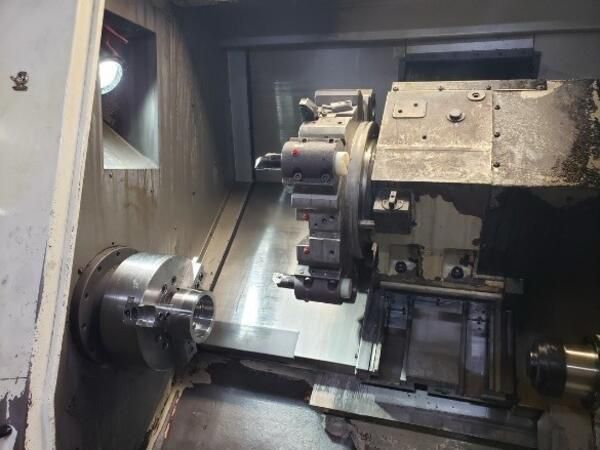

10-Station Turret
12″ Kitagawa Hydraulic Chuck
A2-8 Spindle with 4.13″ Bore

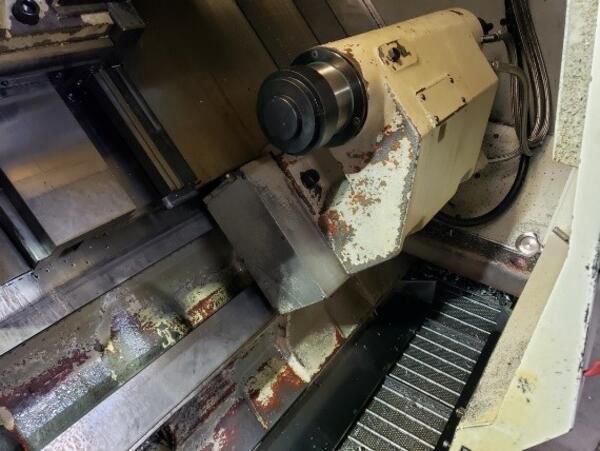

Hydraulic Tailstock with Power Quill
Chip Conveyor
Coolant System Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
